Business with a personal touch - Zebra TC55 Android Handheld for Logistics

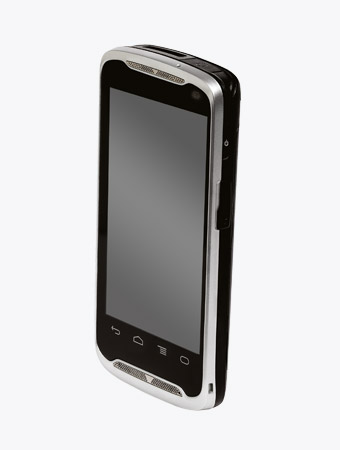

The Zebra TC55 is a Mobile Data Terminal in comfortable Smartphone format with large touch display, integrated scanner and the robustness of the business class. The TC55 is the ideal companion, if you need to work efficiently and mobile on the go. The TC55 - made for businesses​​, designed for people.

The Android Handheld for Logistics combines the advantages of consumer devices (large screen & easy handling) with the necessary robustness for professional applications (IP67 sealed, Corning Gorilla Glass 2 display) and durability into a future-proof industrial computer. With extensions from Motorola Solutions the TC55 transforms Android™ from a private user system into a viable commercial operating system.

The device offers the fastest wireless connections over 4G mobile communications, 802.11a/b/g/n Wi-Fi and Bluetooth 4.0 for barrier-free and rapid communication of your mobile employees.

Not least because of its extensive data collection capabilities the TC55 is the ideal device for use in transport logistics: With integrated 1D barcode scanner, optional 1D/2D Ring Scanner, 8 MP camera and Near Field Communications (NFC) it is capable of capturing virtually any type of data.

The large display allows convenient operation under various environmental conditions as known from consumer devices. Its compact size, high flexibility and the light weight of the TC55 are features that also contribute to enhanced user acceptance.

Technical Specifications of Zebra TC55

DIMENSIONS

137 mm x 69 mm x 15.9 mm

DISPLAY

4.3-Zoll WVGA, Dual mode capacitive touch with stylus or fingertip (bare or gloved) input

WEIGHT

220 g (with standard battery)

PROCESSOR

1.5 GHz dual-core processor

OPERATING SYSTEM

Android 4.1.2

MEMORY

1 GB RAM / 8 GB Flash

BARCODE SCANNER

Integrated 1D linear imager; optional RS507 Bluetooth ring-style imager

PROTECTION CLASS

IP67 Sealing

TEMPERATURE RANGE

-10°C to 50°C

WIRELESS COMMUNICATION

All current communication standards (4G mobile communications, 802.11a/b/g/n Wi-Fi and Bluetooth 4.0)

CAMERA

Color, 8 Megapixel; Autofocus with user-controllable flash; Supports integrated 1D/2D bar code capture

BATTERY

Removable and rechargeable lithium-ion battery;
Standard: 2940 mAh; expanded 1.5x: 4410 mAh

For further technical information please see the datasheet for download.

Errors and changes excepted
