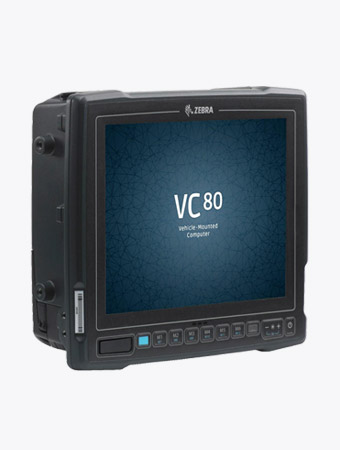

Zebra VC80
Free Access to Desktop Applications - VC80 Vehicle Mount Terminal
Flexibly mountable
The compact VC80 provides flexible mounting options for mounting in forklifts, clamp trucks, terminal tractors, and more.
Robust and resistant
Its rugged design withstands the harsh conditions in distribution centers, airports, seaports, at switch yards and other, even cooled logistics areas. The VC80 is ready for the toughest environments with dust, water and extreme temperatures.
Flexible data entry
The forklift terminal accepts flexible data input - via touch or optionally via keyboard. The operation with gloves is possible.
Different connections for scanners and more
The VC80 provides additional ports for barcode scanner, mobile printer, push-to-talk microphone, and more.
Technical Specifications of Zebra VC80
DIMENSIONS
265 mm L x 235 mm W x 90 mm D
WEIGHT
3.9 kg
OPERATING SYSTEM
Windows Embedded Standard 7, 64 bit; Windows 7
Professional, 64 bit; Windows 10 ready
DISPLAY
10.4 in. color XGA (1024 x 768) LCD; 24-bit color depth;
choice of 400 or 1,000 NITs; LED backlight
KEYS
Six (6) programmable macro keys; keyboard key;
volume; brightness; blue key for 2nd level functions
For further technical information please see the datasheet for download.
Errors and changes excepted
Related Downloads
Spec Sheet Zebra VC80
Zebra VC80 forklift terminal manufacturer information
Size
283.99 KB
Download
Info Video
Item Numbers of the Zebra VC80 forklift terminal
VC8010FSAA-11CAAAXX
10" (1024 X 768), Freezer (-30 - +50 C, Condensing), Standard Display, Intel E3825 Dual Core, 1.33 Ghz, 1 Mb Cache, 2 Gb Ram, 32 Gb Ssd, Windows Embedded Standard 7, English, Tekterm, Basic Io, Int. Antennas
VC8010SOAA11CABAXX
10" (1024 X 768), Standard (-30 - +50 C, Non-Condensing), Outdoor Readable Display, Intel E3825 Dual Core, 1.33 Ghz, 1 Mb Cache, 2 Gb Ram, 32 Gb Ssd, Windows Embedded Standard 7, English, Tekterm, Basic Io, Connectors For Ext. Antennas
VC8010SOBB21CCBCXX
10" (1024 X 768), Standard (-30 - +50 C, Non-Condensing), Outdoor Readable Display, Intel E3845 Quad Core, 1.91 Ghz, 2 Mb Cache, 4 Gb Ram, 64 Gb Ssd, Windows 7 Pro, English, Tekterm, Basic Io Plus Can-Bus, Connectors For Ext. Antennas, Gps
VC8010SSAA00AAAAXX
10" (1024 X 768), Standard (-30 - +50 C, Non-Condensing), Standard Display, Intel E3825 Dual Core, 1.33 Ghz, 1 Mb Cache, 2 Gb Ram, 32 Gb Ssd, Basic Io, Int. Antennas
VC8010SSAA-11CAAAXX
10" (1024 X 768), Standard (-30 - +50 C, Non-Condensing), Standard Display, Intel E3825 Dual Core, 1.33 Ghz, 1 Mb Cache, 2 Gb Ram, 32 Gb Ssd, Windows Embedded Standard 7, English, Tekterm, Basic Io, Int. Antennas
VC8010SSAA11CABAXX
10" (1024 X 768), Standard (-30 - +50 C, Non-Condensing), Standard Display, Intel E3825 Dual Core, 1.33 Ghz, 1 Mb Cache, 2 Gb Ram, 32 Gb Ssd, Windows Embedded Standard 7, English, Basic Io, Tekterm, Connectors For Ext. Antennas
VC8010SSAA11CBAAXX
10" (1024 X 768), Standard (-30 - +50 C, Non-Condensing), Standard Display, Intel E3825 Dual Core, 1.33 Ghz, 1 Mb Cache, 2 Gb Ram, 32 Gb Ssd, Windows Embedded Standard 7, English, Tekterm, Basic Io Plus Ethernet, Int. Antennas
VC8010SSBB00ABBAXX
10" (1024 x 768), Standard (-30 - +50 C, Non-Condensing Environments), Standard Display, Intel E3845 Quad Core, 1.91 GHz, 2 MB Cache, 4 GB RAM, 64 GB SSD, No Operating System, Basic IO plus Ethernet, connectors for external antennas
VC8010SSBB21CBBAXX
10" (1024 X 768), Standard (-30 - +50 C, Non-Condensing), Standard Display, Intel E3845 Quad Core, 1.91 Ghz, 2 Mb Cache, 4 Gb Ram, 64 Gb Ssd, Windows 7 Pro, English, Tekterm, Basic Io Plus Ethernet, Connectors For Ext. Antennas
VC8010SSBB21CCAAXX
10" (1024 X 768), Standard (-30 - +50 C, Non-Condensing), Standard Display, Intel E3845 Quad Core, 1.91 Ghz, 2 Mb Cache, 4 Gb Ram, 64 Gb Ssd, Windows 7 Professional, English, Tekterm, Basic Io Plus Can-Bus, Int. Antennas
VC8010SSBB21CCBAXX
10" (1024 X 768), Standard (-30 - +50 C, Non-Condensing), Standard Display, Intel E3845 Quad Core, 1.91 Ghz, 2 Mb Cache, 4 Gb Ram, 64 Gb Ssd, Windows 7 Professional, English, Tekterm, Basic Io Plus Can-Bus, Connectors For Ext. Antennas
20667-002 | Antenna, 802.11 b/g - dipole 2 dBi reverse polarity SMA connector (stubby)
AN000090A01 | Antenna Active Gnss L1 Band Sma Plug 2.9M Rg316Ds Cable
AN2010 | Antenna, dual band, 802.11 a/b/g/n, 2 dBi, RPSMA connector, magnetic mount, 2.9m
AN2020 | Antenna, 2.4 GHz, 802.11 b/g, 5 dBi, RPSMA connector, magnetic mount, 2.9m
AN2030 | Whip antenna (stubby), dual band, 802.11 a/b/g/n, 2.4GHz 2dBi, 5GHz 3.7 dBi, RPSMA connector
AR1000 | Right Angle SMA reverse polarity plug-jack Adapter
9010376 | iKey Keyboard, English, backlight, USB
9010377 | iKey Keyboard, colour, English, USB
SLK-101-M-USB-3F | KEYBOARD:STANDARD
KT-SPRTCT-VC70-05R | Kit: Screen protector, VC70, set of 5
M1000 | Speaker/Mic with push-to-talk function
SL0001 | Stylus and Stylus Holder
KT-KYBDMNT-VC80-R | Function/Numeric Keypad Side Mount Bracket
KT-KYBDTRAY-VC80-R | Keyboard Mounting Tray. Includes Tilting Arms, Knobs And Screws. For Vc80 And Ikey Keyboards
KT-SCANMNT-VC80-R | Side Mounted Holder For Scanner
MT3501 | VESA plate
MT3502 | Round plate
MT3505 | Clamp base (for 4" or 12" RAM arm), 2" max. width
MT3507 | Clamp base (for 4" or 12" RAM arm), 3" max. width
MT3509 | Rail base (for 4" or 12" RAM arm), 1-1/4" to 1-7/8"
MT3510 | Rail base (for 4" or 12" RAM arm), 2" to 2 1/2"
MT4200 | Quick release mount
MT4205 | Mounting plate for MT4200 Quick Release Mount
MT4210 | Adapter bracket kit for 82XX quick release mount
MT4301 | RAM mount, 4" arm
MT4302 | RAM mount, 12" arm
MT4510 | RAM rectangular base with 2.25" rubber ball
CA1210 | Power Extension Cable, DC, 6', waterproof
CA1220 | Power Extension Cable DC, 6', waterproof - Screen Blanking
CA1230 | Power extension cable for pre-regulator with ignition sense
CA1300 | Screen blanking cable (DB9 to open wires)
CB-000433-01 | Cable, Assembly,Vc80 Can Cable To Deutsch Connector
CB000416A01 | DC Power Adapter to VC70 Extension Cable
CB000417A01 | DC Power Adapter to VC50 Extension Cable
PS1370 | Pre-Regulator, 19 - 90 VDC in, 15 VDC out, 90 W
PS1450 | AC/DC Power Supply 18V 3.3A 110/220V
KT-VC80-SCRH1-01 | FRONT WITH TOUCH SCREEN (HEATED)
KT-VC80-SCRN1-01 | FRONT WITH TOUCH SCREEN (NON-HEATED)
OSB-VC80XX-10 1 YEAR ON SITE SUPPORT. INCLUDES COMPREHENSIVE COVERAGE. CHECK DATASHEET FOR REGIONAL AVAILABILITY.
SCE-VC80XX-10 1 YEAR ZEBRA ONECARE SERVICE CENTER ESSENTIAL. INCLUDES COVERAGE FOR KEYBOARD.
DOES NOT INCLUDE COMPREHENSIVE COVERAGE.
SCS-VC80XX-10 1 YEAR ZEBRA ONECARE SERVICE CENTER SELECT. INCLUDES COVERAGE FOR KEYBOARD.
DOES NOT INCLUDE COMPREHENSIVE COVERAGE. (REQUIRES CUSTOMER-SUPPLIED SPARES POOL IN NA, NOT AVAILABLE FOR LA.)
SOB-VC80XX-30 3 YEAR SERVICE FROM THE START ON SITE BRONZE. INCLUDES COVERAGE FOR KEYBOARD.
INCLUDES COMPREHENSIVE COVERAGE. CHECK DATASHEET FOR REGIONAL AVAILABILITY.
SOB-VC80XX-50 5 YEAR SERVICE FROM THE START ON SITE BRONZE. INCLUDES COVERAGE FOR KEYBOARD.
INCLUDES COMPREHENSIVE COVERAGE. CHECK DATASHEET FOR REGIONAL AVAILABILITY.
SSE-VC80XX-10-R 1 YEAR ZEBRA ONECARE ESSENTIAL RENEWAL. INCLUDES COVERAGE FOR KEYBOARD. INCLUDES
COMPREHENSIVE COVERAGE.
SSE-VC80XX-20-R 2 YEAR ZEBRA ONECARE ESSENTIAL RENEWAL. INCLUDES COVERAGE FOR KEYBOARD. INCLUDES
COMPREHENSIVE COVERAGE. CAN ONLY BE ORDERED ONCE AFTER INITIAL ZEBRA ONECARE CONTRACT EXPIRES
SSE-VC80XX-30 3 YEAR ZEBRA ONECARE ESSENTIAL. INCLUDES COVERAGE FOR KEYBOARD. INCLUDES COMPREHENSIVE COVERAGE
SSE-VC80XX-50 5 YEAR ZEBRA ONECARE ESSENTIAL. INCLUDES COVERAGE FOR KEYBOARD. INCLUDES COMPREHENSIVE COVERAGE
SSS-VC80XX-10-R 1 YEAR ZEBRA ONECARE SELECT RENEWAL. INCLUDES COVERAGE FOR KEYBOARD. INCLUDES
COMPREHENSIVE COVERAGE. (REQUIRES CUSTOMER-SUPPLIED SPARES POOL IN NA, NOT AVAILABLE FOR LA.)
SSS-VC80XX-20-R 2 YEAR ZEBRA ONECARE SELECT RENEWAL. INCLUDES COVERAGE FOR KEYBOARD. INCLUDES COMPREHENSIVE COVERAGE. (REQUIRES CUSTOMER-SUPPLIED SPARES POOL IN NA, NOT AVAILABLE FOR LA.) CAN ONLY BE ORDERED ONCE AFTER INITIAL ZEBRA ONECARE CONTRACT EXPIRES
SSS-VC80XX-30 3 YEAR ZEBRA ONECARE SELECT. INCLUDES COVERAGE FOR KEYBOARD. INCLUDES COMPREHENSIVE
COVERAGE. (REQUIRES CUSTOMER-SUPPLIED SPARES POOL IN NA, NOT AVAILABLE FOR LA.)
SSS-VC80XX-50 5 YEAR ZEBRA ONECARE SELECT. INCLUDES COVERAGE FOR KEYBOARD. INCLUDES COMPREHENSIVE
COVERAGE. (REQUIRES CUSTOMER-SUPPLIED SPARES POOL IN NA, NOT AVAILABLE FOR LA.)
OPT-COMM-10 1 Year Commissioning Option. Cannot be ordered alone.
OPT-COMM-20 2 Year Commissioning Option. Cannot be ordered alone.
OPT-COMM-30 3 Year Commissioning Option. Cannot be ordered alone.
OPT-COMM-50 5 Year Commissioning Option. Cannot be ordered alone.
OPT-DASHBOARD-10 1 Year Asset Visibility Dashboard Access. Cannot be ordered alone. Must be purchased together
with a Zebra OneCare Essential agreement.
OPT-DASHBOARD-20 2 Year Asset Visibility Dashboard Access. Cannot be ordered alone. Must be purchased together
with a Zebra OneCare Essential agreement.
OPT-DASHBOARD-30 3 Year Asset Visibility Dashboard Access. Cannot be ordered alone. Must be purchased together
with a Zebra OneCare Essential agreement.
OPT-DASHBOARD-50 5 Year Asset Visibility Dashboard Access. Cannot be ordered alone. Must be purchased together
with a Zebra OneCare Essential agreement.
OPT-EXPSHIP-10 1 Year Express Shipping Option. Cannot be ordered alone. Available in NALA only.
OPT-EXPSHIP-20 2 Year Express Shipping Option. Cannot be ordered alone. Available in NALA only
OPT-EXPSHIP-30 3 Year Express Shipping Option. Cannot be ordered alone. Available in NALA only
OPT-EXPSHIP-50 5 Year Express Shipping Option. Cannot be ordered alone. Available in NALA only
OPT-VC80XXFSTRK-30 FASTRACK OPTION MUST BE PURCHASED UP FRONT WITH THE HARDWARE (OR WITHIN 30
DAYS THEREAFTER), TOGETHER WITH A 3-YR ZEBRA ONECARE SELECT AGREEMENT-AVAILABLE
IN THE UK, BELGIUM AND NETHERLANDS ONLY
COM-SOTI-SV3 Commissioning of 1 SOTI MobiControl server and device config for up to 3 diff mobile device
types (Zebra MC, Apple iOS or Google Android based devices). Hotel & Travel is extra and not discountable. See product note tab. USA & CANADA ONLY. Contact: rrquote@zebra.com for a quote
MDM-COM-000 Commissioning of 1 SOTI MobiControl server and device configuration for up to 3 different mobile
device types (Zebra MC, Apple iOS or Google Android based devices). Costs for Hotel and Travel see product note tab. EMEA and APAC ONLY
MDM-COM-001 Commissioning of multiple SOTI MobiControl server and/or configuration not supported by
Standard Commissioning service. Please contact your Zebra sales rep for details. Minimum order quantity is 10 licenses. • Contact: rrquote@zebra.com for a quote
MDM-COM-100 Commissioning of 1 SOTI MobiControl server and device configuration for up to 3 different mobile device types (Zebra MC, Apple iOS or Google Android based devices). Costs for Hotel and
Travel see product note tab. EMEA and APAC ONLY
SW-SOTI-CLOUD Subscription Pricing with SOTI dedicated cloud server - includes Standard Support. (SOTI PART# SOTI-MCL-DEV)
SW-SOTI-MCADDON Additional Perpetual License for existing reg code. (SOTI PART# SOTI-MCP-DEV)
SW-SOTI-MCL-DEF If Cloud SaaS device instance is less than seventy-five (75) licenses, instance fee applies until such time the instance surpasses 75 licenses. (SOTI PART# SOTI-MCL-DEF)
SW-SOTI-MCNOMAINT SOTI MobiControl Perpetual Client License. Must purchase minimum 1 year maintenance.
Pre-Existing SOTI Deployments Must co-terminate maintenance contracts with equivalent months of maintenance. MIN ORDER QTY is 10 Licenses for new deployments and 5 Licenses for add-on orders. (SOTI PART# SOTI-MCP-DEV)
SW-SOTI-SAAS Subscription Pricing for customers who install on their own hardware - includes Standard Support. (SOTI PART# SOTI-MCS-DEV)
SW-SOTISERVER MobiControl Server License - Initial purchase of SOTI Mobicontrol requires the purchase of 1 or More Server Licenses. Clients can be added to existing instances of SOTI Mobicontrol. (SOTI PART# SOTI-SERVER)
SWS-SOTIMC-10 1 Year Software Support for SOTI. Includes technical support and software updates. Priced per
license. Minimum order quantity is 10 licenses. (SOTI PART# SOTI-MCP-MNT (old part # SOTIMC-PREM-MAINT-1MO)
SWS-SOTIMC-1M Adds 1 Month of Software Support for SOTI to existing contracts . Includes technical support
and software updates. Priced per license. Must be ordered with a Soti license. Minimum order quantity IS 10 licenses.
SWS-SOTIMC-20 2 Year Software Support for SOTI. Includes technical support and software updates. Priced per license. Minimum order quantity is 10 licenses.
SWS-SOTIMC-30 3 Year Software Support for SOTI. Includes technical support and software updates. Priced per
license. Minimum order quantity is 10 licenses.
ZSOTI-CON-MIG-HRL SOTI MIGRATION SERVICES INCLUDING PLANNING, INSTALLATION & CONFIGURATION OF
SERVER AND DEVICES - PRICE PER HOUR
ZSOTI-IMP-HRL SOTI JUMPSTART IMPLEMENTATION SERVICE PER HOUR CHARGE (GREAT ER T HAN 1,000
DEVICES, QUOTE ON NUMBER OF HOURS TO BE FIR MED POST DISCOVERY CALL WITH THE CUSTOMER)
ZSOTI-MCX-ADV-1MO SOTI Advantage Support is an add-on to standard support. 24x7 level 1 support Price is per
device, per month
ZSOTI-MCX-ENT-1MO SOTI MOBICONTROL ENTERPRISE SUPPORT add-on to standard maintenance support Price per
device, per month. minimum quarterly charge applied if under 300 devices ZSOTI-MCX-ENTMIN
ZSOTI-MCX-ENT-MIN SOTI MOBICONTROL ENTERPRISE SUPPORT (IF LESS THAN 300 DEVICES, ADDITIONAL QUARTERLY CHARGE) ASSESSED EACH QUARTER UNTIL AT LEAST 300 DEVICE MANAGED
ZSOTI-PSS-TRN-3EX SOTI ACADEMY CERTIFICATION EXAM FEE (BUNDLE OF 3 EXAMS)
ZSOTI-PSS-TRN-EXM SOTI ACADEMY CERTIFICATION PER EXAM FEE (PER PERSON)
ZSOTI-TRN-ACT SOTI ACADEMY CERTIFIED MOBICONTROL ASSOCIATE TRAINING COURSE (LEVEL 1)
ZSOTI-TRN-ALL SOTI ACADEMY ON DEMAND TRAINING, ALL LEVELS
ZSOTI-TRN-BOT-ATT SOTI MOBICONTROL ADDITIONAL ATTENDEE FOR BOOTCAMP 3-DAY TRAINING (TRAVEL &
EXPENSES ADDITIONAL). PRICE PER PERSON.
ZSOTI-TRN-BOT-ONS SOTI MOBICONTROL BOOTCAMP ONSITE 3-DAY TRAINING (TRAVEL & EXPENSES ADDITIONAL).
PRICE PER SESSION, MAX ATTENDEES PER SESSION IS 5.
ZSOTI-TRN-EXP SOTI ACADEMY CERTIFIED MOBICONTROL EXPERT TRAINING COURSE (LEVEL 3)
ZSOTI-TRN-PRF SOTI ACADEMY CERTIFIED MOBICONTROL PROFESSIONAL TRAINING COURSE (LEVEL 2)
SWE-82990-01 Wavelink Traditional Green Screen Terminal Emulation Client VT/HP (for Window & Android devices)
SWE-82990-02 Wavelink Traditional Green Screen Terminal Emulation Client 5250/3270 (for Window & Android devices)
SWE-82990-03 Wavelink Traditional Green Screen Terminal Emulation Client 4 in 1 (For Window & Android devices)
SWS-WL-TN-2IN1-10 1 Year Software Support for Wavelink Telnet Client 2 in 1
SWS-WL-TN-2IN1-30 3 Year Software Support for Wavelink Telnet Client 2 in 1
SWS-WL-TN-4IN1-10 1 Year Software Support for Wavelink Telnet Client 4 in 1
SWS-WL-TN-4IN1-30 3 Year Software Support for Wavelink Telnet Client 4 in 1
C-OTT-WIN32 License Open TekTerm
C-OTT-WINCE License Open TekTerm
C-OTT-WM License Open TekTerm
SW9510L License Commserver Lite (maintenance is manditory for first year)
SW9510S License Commserver Standard (maintenance is manditory for first year)
SW9510TSFO License WINTSFO (maintenance is manditory for first year)
SWS-SW95XX-10 Commserver Maintenance 1 Year
SWS-SW95XX-20 Commserver Maintenance 2 Year
SWS-SW95XX-30 Commserver Maintenance 3 Year
SWS-TEKTRMCLNT-10 1 year maintenance for TekTerm Client (TekTerm Server maintenance is to be purchased seperately)
SWS-TEKTRMCLNT-20 2 years maintenance for TekTerm Client(TekTerm Server maintenance is to be purchased seperately)
SWS-TEKTRMCLNT-30 3 years maintenance for TekTerm Client(TekTerm Server maintenance is to be purchased seperately)
SW-WL-SPEAKEASY Wavelink Speakeasy Voice Client (One Client per Device). Note, one or three year software support to be ordered in addtion at time of purchase.
SWS-SPKEASY-10 1 Year Software Support for Speakeasy. Includes techical support and software updates. Priced per license
SWS-SPKEASY-30 3 Year Software Support for Speakeasy. Includes techical support and software updates. Priced per license
