Test the DECT MD40 Module - MD40 Evaluation Board und Kit

If you want to integrate the DECT module MD40 DECT into your solution, the Eval-Kit provides the opportunity of testing the modules first.The Eval-Kit includes three evaluation boards and three MD40 DECT modules. Through a USB interface on the evaluation board, you can connect the DECT modules easily with your PC and immediately begin you tests. A USB power supply provides PC-independent power for 2 MD40 evaluation boards.

Characteristics of MD40 Evaluation Board

  • Easy and quick entry into the development process with the MD40 module
  • The MD40 module is connected via a USB to UART bridge to a PC
  • PC connection via USB 2.0 (full speed, 12 Mbit / s) mini-B connector
  • Royalty free USB driver for Windows 7, XP (Virtual COM port device driver)
  • Supports all handshake and modem interface signals

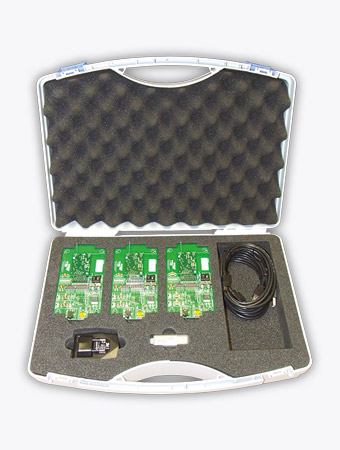

The following items are included with delivery:

  • 3 Pc. DECT MD40 Evaluation Board
  • 3 Pc. DECT MD40 Module
  • 3 Pc. USB Connection Cable
  • USB Power Supply for 2 MD40 Evaluation Boards
  • USB Stick with Programs, Drivers, Data Sheets and Manual
  • Sturdy Plastic Case incl. Rubber Foam Inlay for secure storage and comfortable transport

NOTE: The Evaluation Board comes without the MD40 Module.

Technical Specifications of MD40 Evaluation Board and Kit

DIMENSIONS

148 x 72 x 16 mm (Board) • 390 x 290 x 110 mm (Kit)

TEMPERATURE RANGE

-20°C to +60°C

WEIGHT

52g (without MD40 Module) • 1200g (Kit)

POWER SUPPLY

+5VDC / 500mA over USB

PC CONNECTION

Mini-B USB

OPERATING SYSTEM

Windows XP (32-Bit), Windows 7 (32-Bit, 64-Bit)

For further technical information please see the datasheet for download.

Errors and changes excepted

Related Downloads

Spec Sheet MD40 Evaluation Board

Product information and technical data MD40 Evaluation Board and Kit (Document prints color saving)

Size

348.85 KB

File Type

Download

DE EN

Item Number of MD40 Evaluation Board and Kit

N/A
